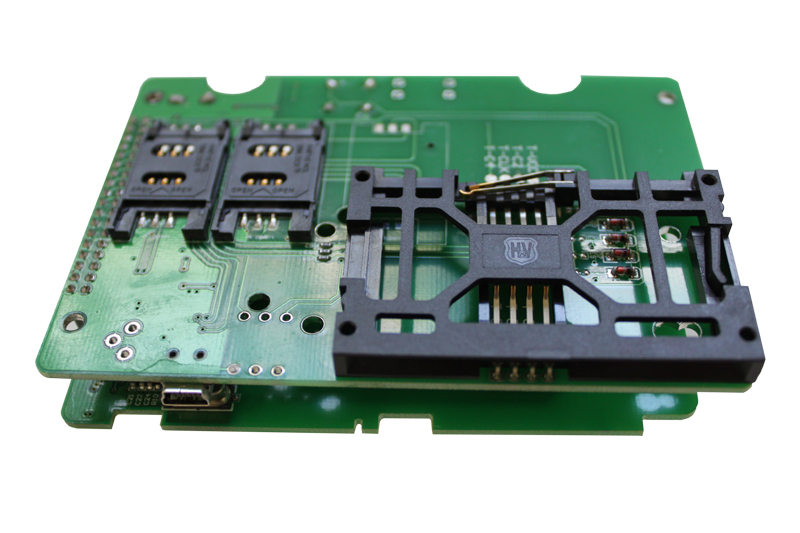

SUZTC-MR01 / 02 |
• Combines ISO7816 contact and ISO14443 contactless reader within one product
• Easy-to-install for standard single-gang electrical switchbox
• Serial interface available: RS232/TTL/USB2.0
• Read and write functionality
• Anti-Collision procedure support
• Support SAM module (Optional, up to 4)
• Hybrid Contact smartcard reader ISO7816 (Optional)
• Case color & company logo customizing options |
 |
 |
|
 |
SUZTC-MRP76 TTL |
• Combines ISO 7816 contact and ISO 14443 Contactless reader
• Easy-to-install for standard single-gang electrical switch box
• Serial interface available: RS 232/TTL/USB 2.0
• Read and write functionality
• Anti-Collision procedure support
• Support SAM module (Optional, up to 4)
• Hybrid Contact smart card reader ISO 7816 (Optional)
• 1 ISO-sized slot (ISO 7816 1 and 2)
• 2 LEDs (red/green)
• Case color & company logo customizing options |
|
|
|
 |
COMBO Reader PN74R59 |
• Compliance with PC/SC for contact, contactless and SAM crd interfaces
• Compliance with CCID driver USB Full Speed
• Supports ISO7816-1-2-3-4
• Supports memory cards 4424 SLE5528,SLE5542,etc.
• Supports ISO14443Type A , B, F T=CL
• Built-in antenna for contactless tag access, withcard reading distance of up to 50 mm (depending on tag type)
• Mifare Plus and DES Fire EV1, 1K/4K Cards
• Mifare Read/write speed of up to 848kbps for contactless interface
• Built-in anti-collision
• Supports extended APDU
• Read/write speed of up to 344kbps for contact interface
• Built in ISO 7816 type / SAM card slot (MAX.to 12 slot)
• controllable buzzer and LEDs |
|
|
|
 |

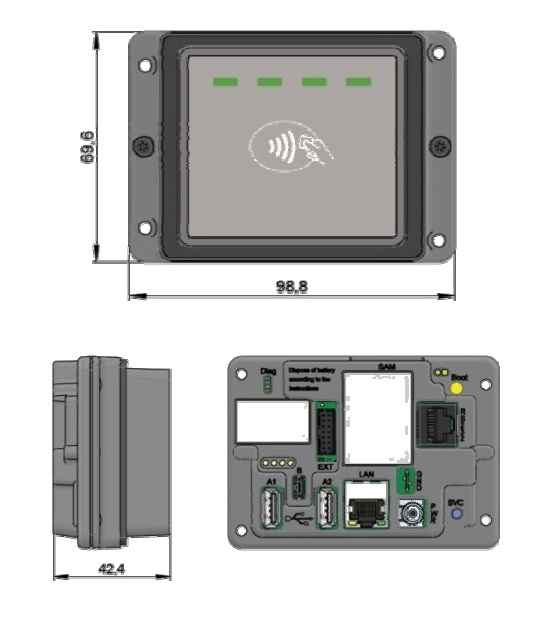

NFC Reader Module |
• Supported media: IOS14443 type A and Bcards (Java cards); max baud 424K (extendable to 848K). Mifare UL, Classic 1K, Classic4K, UL-c, Mifare Plus; max baud 106K.
• PSAMs: 1~4 PSAMs; to be accessed via removable panel on underside of unit.
• Interface: NFC version is USB only. Requires USB power stealer or independent power supply.
• Operating frequecy: 13.56 MHz
• Operating distance: 20mm
• EMV: L1 capable (approval TBA) |
|
|
|
| |
|
